Product Details

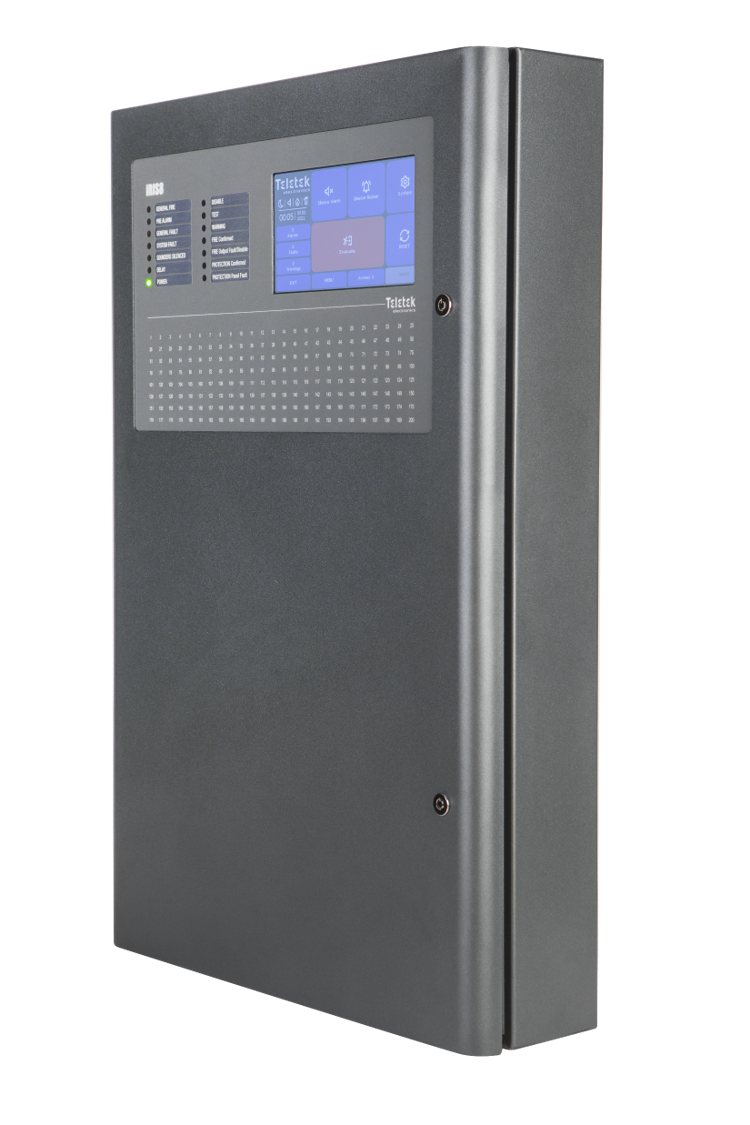

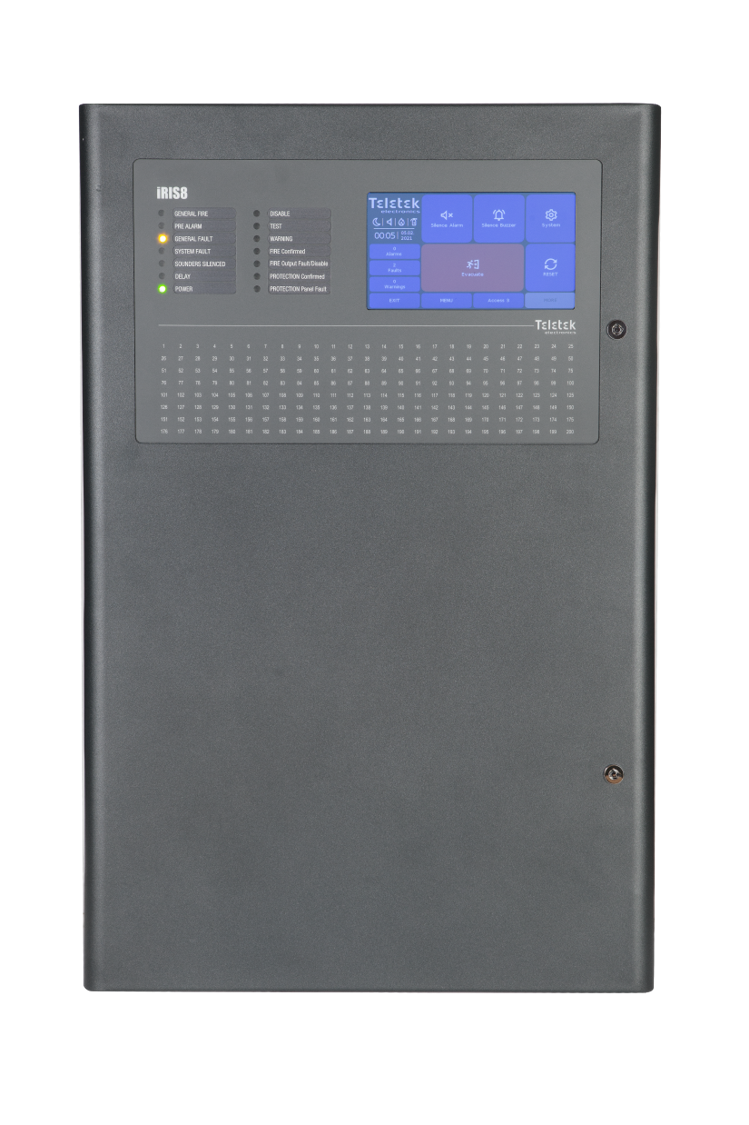

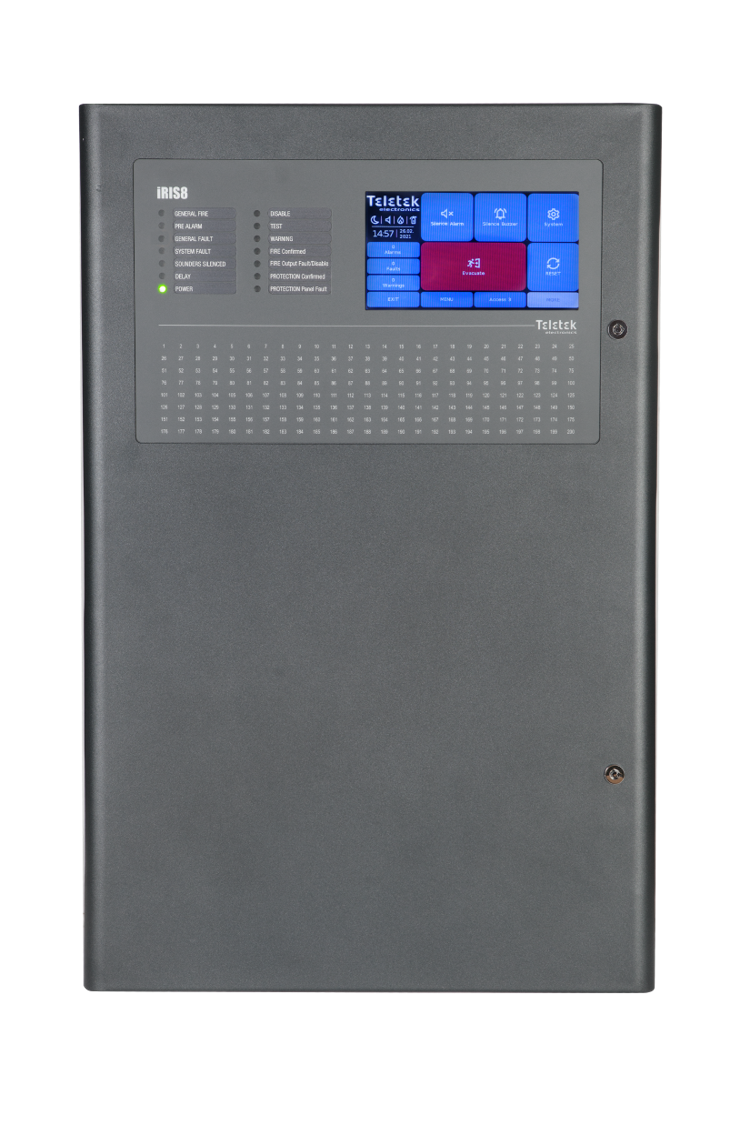

IRIS8 (8 Loops - Addressable Fire Alarm Control Panel)

Rs.450000 Rs.525000

  • Stock: Out of Stock
  • Category : Addressable Fire Detection & Alarm System
  • SKU : 31020064

Addressable control panel with colourful TFT display, expandable up to 8 loops, 200 zones, supports TTE protocol, Metal housing, 1 iRIS8 Loop TTE on-board, optional 8 loops in one and same box;

iRIS8 is Expandable Addressable Fire Alarm Control Panel, the most powerful and sophisticated intelligent addressable fire alarm panel in Teletek Electronics portfolio. Intelligent and technically advanced, it has enhanced integration and networking capabilities to meet the current and future needs of small to larger buildings and installations. The initial purpose of iRIS8 is to be used for fire alarm warning but due to its flexible design it can be modified to carry out many other functions like control and indication applications, with direct integration into intelligent buildings through MODBUS protocol. The available configuration varies from 1 to 8 detection loops. iRIS8 can network up to 64 panels, making it ideal for the largest sites including schools, hospitals, multi-site retail/supermarkets, critical infrastructure and major commercial and industrial facilities. iRIS8 supports two protocols for communication in order to provide a vast range of devices and cope with the most demanding projects. Combined with the modular structure and the networking features there is no project which can’t be realized with iRIS8.


Description

  • Expandable from 1 to 8 loop controllers
  • 2000 devices per system
  • 10 000 events log
  • 7” LCD (color)
  • Multilanguage support
  • 200 Zone Indicators
  • Increased Sounder outputs – 1A + 1A in IRIS8 Ext.
  • AUX – Upgraded with reset function
  • Redundant processor
  • Double address detection and localization
  • Short circuit detection and localization
  • Loop break detection
  • ModBUS TCP/IP protocol
  • Changeable logo picture
  • Cloud server and mobile application
Main Power Supply110÷230VAC,2x 200W
Frequency50÷60 Hz
Back-up Power Supply

Lead-acid type (+1 in IRIS8 Ext )

12V/ 18Ah
 Internal battery resistance <0,3Ohm
Storage Temperature-10˚C to +60˚C
Operating temperature-5°C to +40°C
IP30
Relative Humidity

(without condense)

up to 95%
Dimensions660/430/120mm
 Weight15kg (without battery)


* All panels requires a battery backup to function; need to be procured separately. Refer specifications for size.

** Price are subject to change at anytime. Please confirm via email as no payment gateway is connected.

Color Grey
Material Metal
Origin Europe
Seller's Warranty 1 Year
