Product Details

4 Zones Conventional Fire Alarm Panel E54-2/4. Up to 20 (32 SensoMAG Series) detectors & and unlimited number of call points per zone.

Download datasheet

Rs.40000 Rs.30000

  • Stock: In Stock
  • Category : Conventional Fire Detection & Alarm System
  • SKU : 31020019

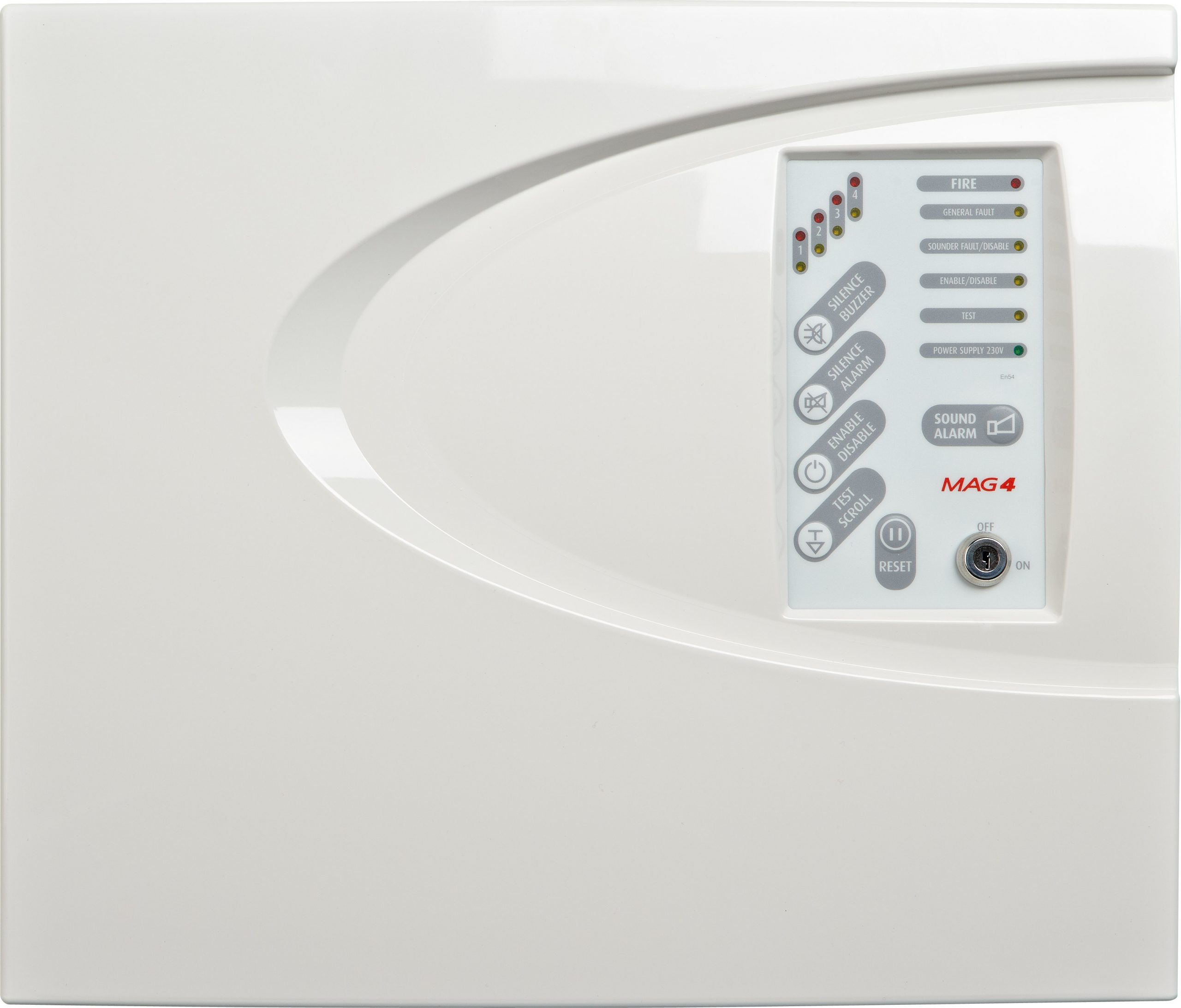

Conventional fire alarm control panel; 4 fixed fully monitored fire zones, plastic box;

MAG4P is a conventional fire alarm panel certified to EN54-2/4 standard, providing 4 fixed zones. Up to 20 (32 SensoMAG Series) fire detectors can be connected to every fire zone. Unlimited number of call points can be connected to every of the fire zones.

MAG4P is situated in a plastic box. The panel is easy for installation and maintenance and provides user-friendly daily operation.

The panel is suitable for residential, small and middle office applications with protected area up to 2200m².


  • 4 fully monitored fire zones with up to 32 fire alarm detectors and unlimited number of call points
  • 2 monitored siren outputs – 300mA
  • 1 “fire” and 1 “fault” relay output
  • Active EOL allowing continuous monitoring of inputs
  • “One man” zone testing
  • Multilanguage support
  • LED indication
  • Security key
  • Plastic box
Main Power Supply~230 VAC ± 10%
Frequency50/ 60Hz
Back-up power supply (battery)1 x 12V/ 7Ah
Consumption (main power supply and fully charged battery)700mA
Consumption (main power supply failure)50mA
Operating temperature0°C to +40°C
Weight (without battery)~2.1kg
Dimensions of the metal box340x290x100mm

* All panels requires a battery backup to function; need to be procured separately. Refer specifications for size.

** Price are subject to change at anytime. Please confirm via email as no payment gateway is connected.

Color White
Origin Europe
Material Plastic
Seller's Warranty 1 Year
