Rs.8000
Rs.8500

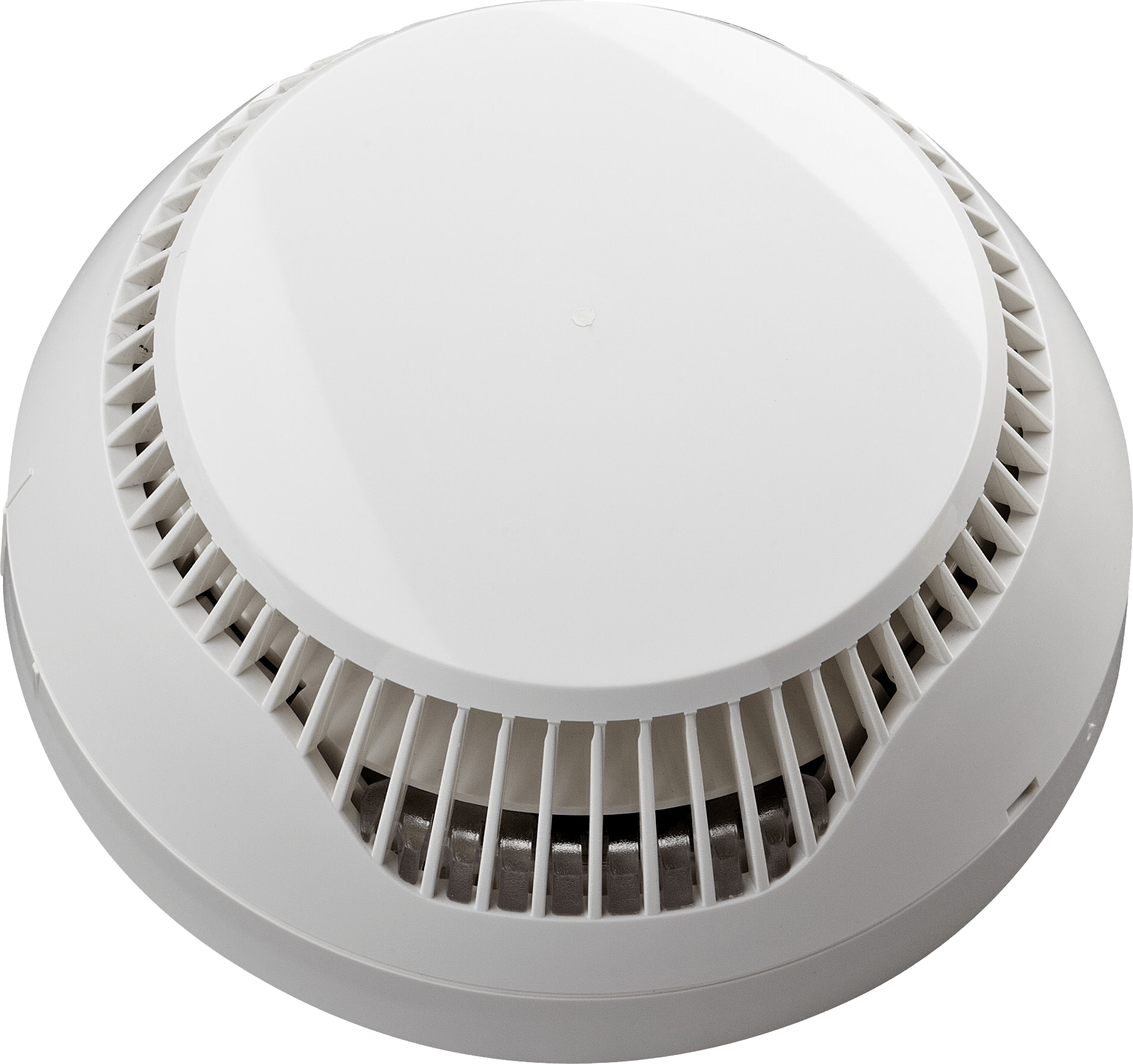

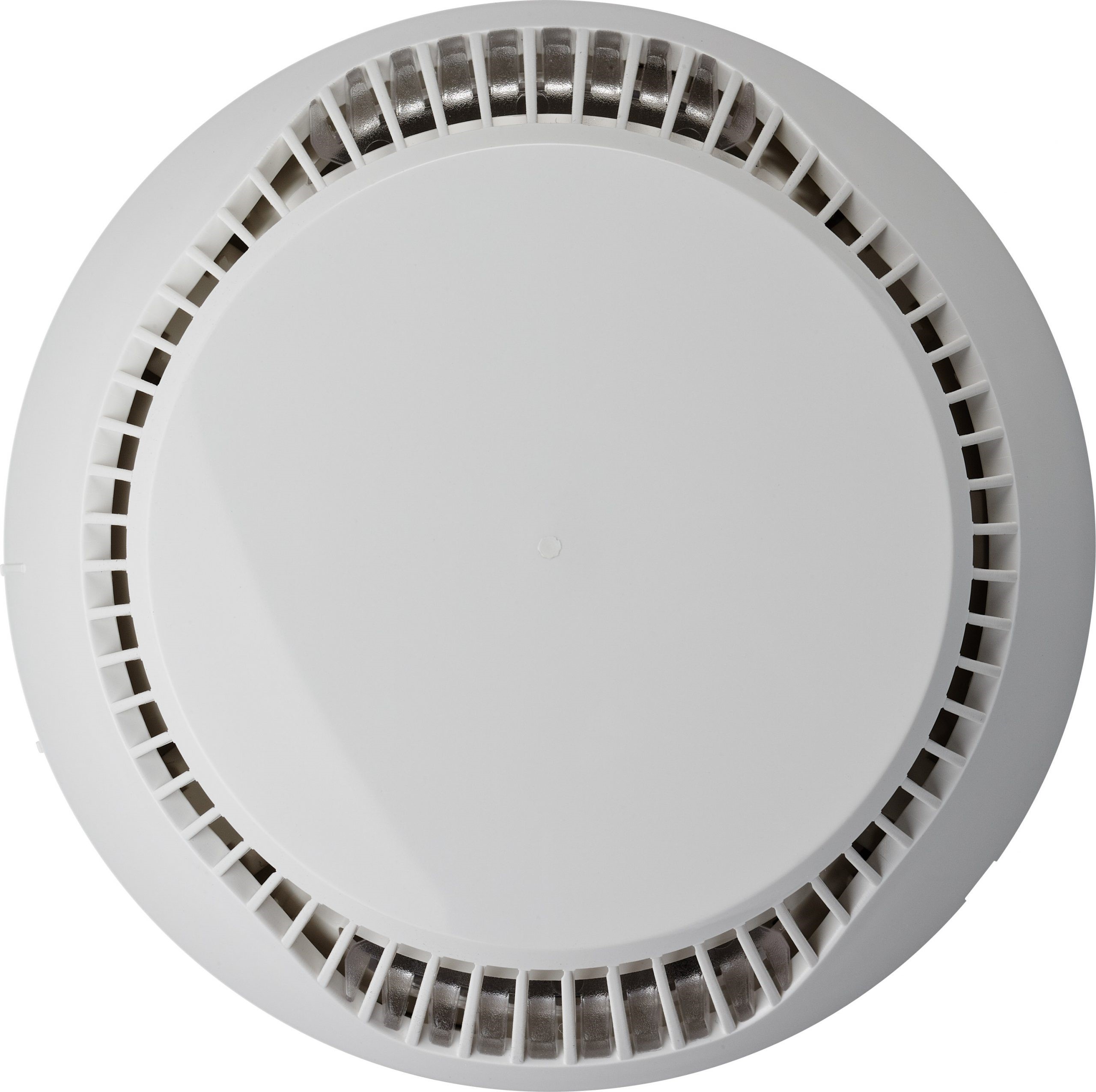

SensoIRIS T110 is аn addressable heat detector designed for installation in addressable fire alarm systems supporting TTE communication protocol.
SensoIRIS T110 is аn addressable heat detector designed for installation in addressable fire alarm systems supporting TTE communication protocol.
The detector is powered on from the panel and can be controlled via the communication protocol.
The detector SensoIRIS T110 is compatible with fire base B124.
SensoIRIS T110 comes with OEM's lifetime warranty!
| Operating Voltage Range | 15-32VDC (Nom. 27VDC) |
| Consumption in quiescent state, no communication | < 130μA@27VDC |
| Consumption in quiescent state, with communication | < 180μA@27VDC |
| Consumption in alarm state, with communication | 6.5mA |
| Output in alarm state at terminal RI (terminals 4/ 1) | 7.5 mA (max)/ 7.5V |
| Wire Gauge for terminals | 0.4mm² – 2.0mm² |
| Operating temperature | -10°C to +65°C |
| Protection | IP30 |
| Weight (including base) | ~110g |
| Dimensions (including base) | 103x42mm |
* All addressable detectors/sounder & beacon requires base to function; need to be procured separately SensoIRIS B124
** Price are subject to change at anytime. Please confirm via email as no payment gateway is connected.
| Color | White |
|---|---|
| Origin | Europe |
| Material | ABS |
| Seller's Warranty | 1 Year |
