Product Details

Addressable Optical Smoke Detector SensoIRIS S130 (EN54-7)

Download datasheet

Rs.8000 Rs.8500

  • Category : Addressable Fire Detection & Alarm System
  • SKU : 31060049

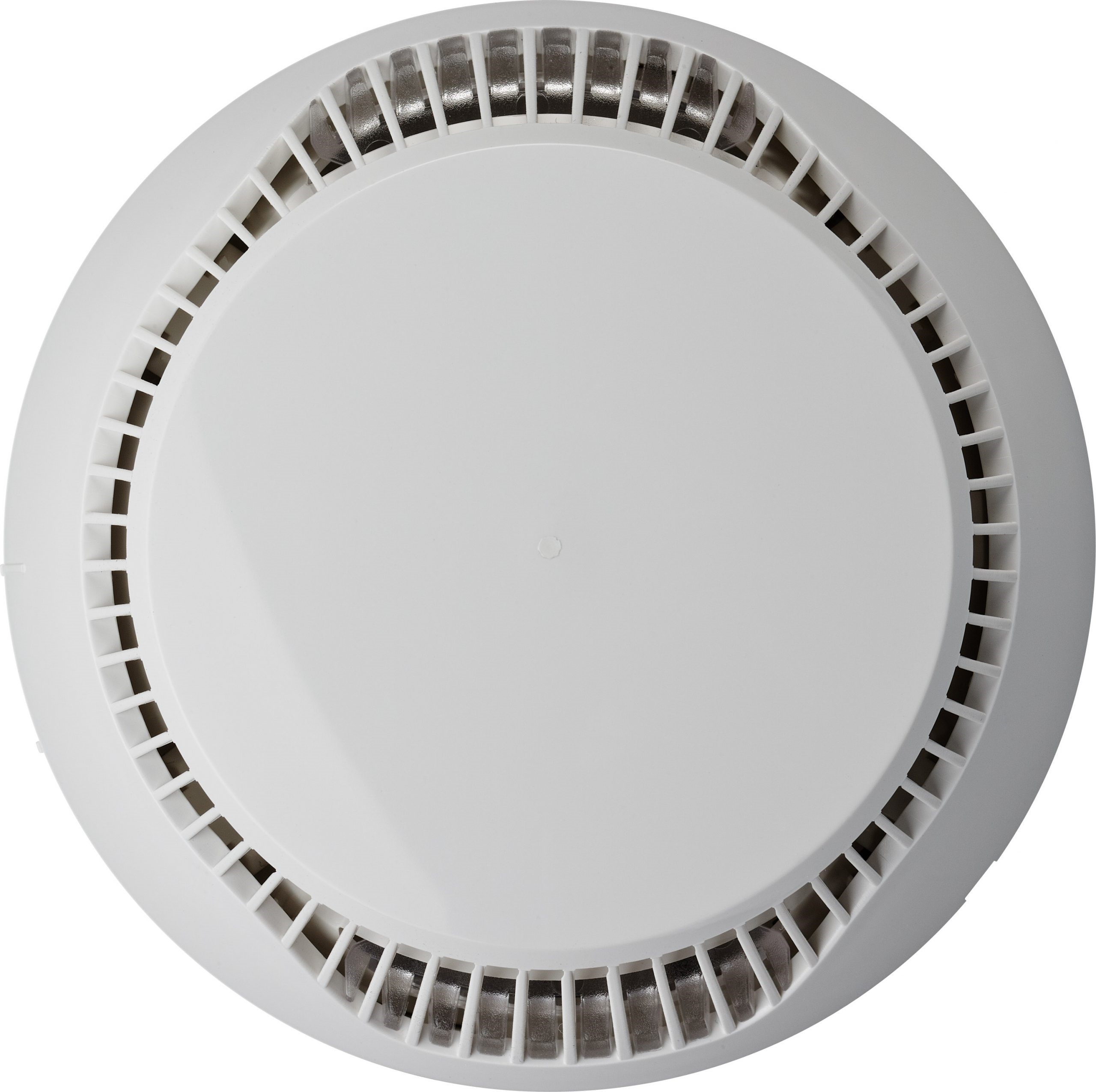

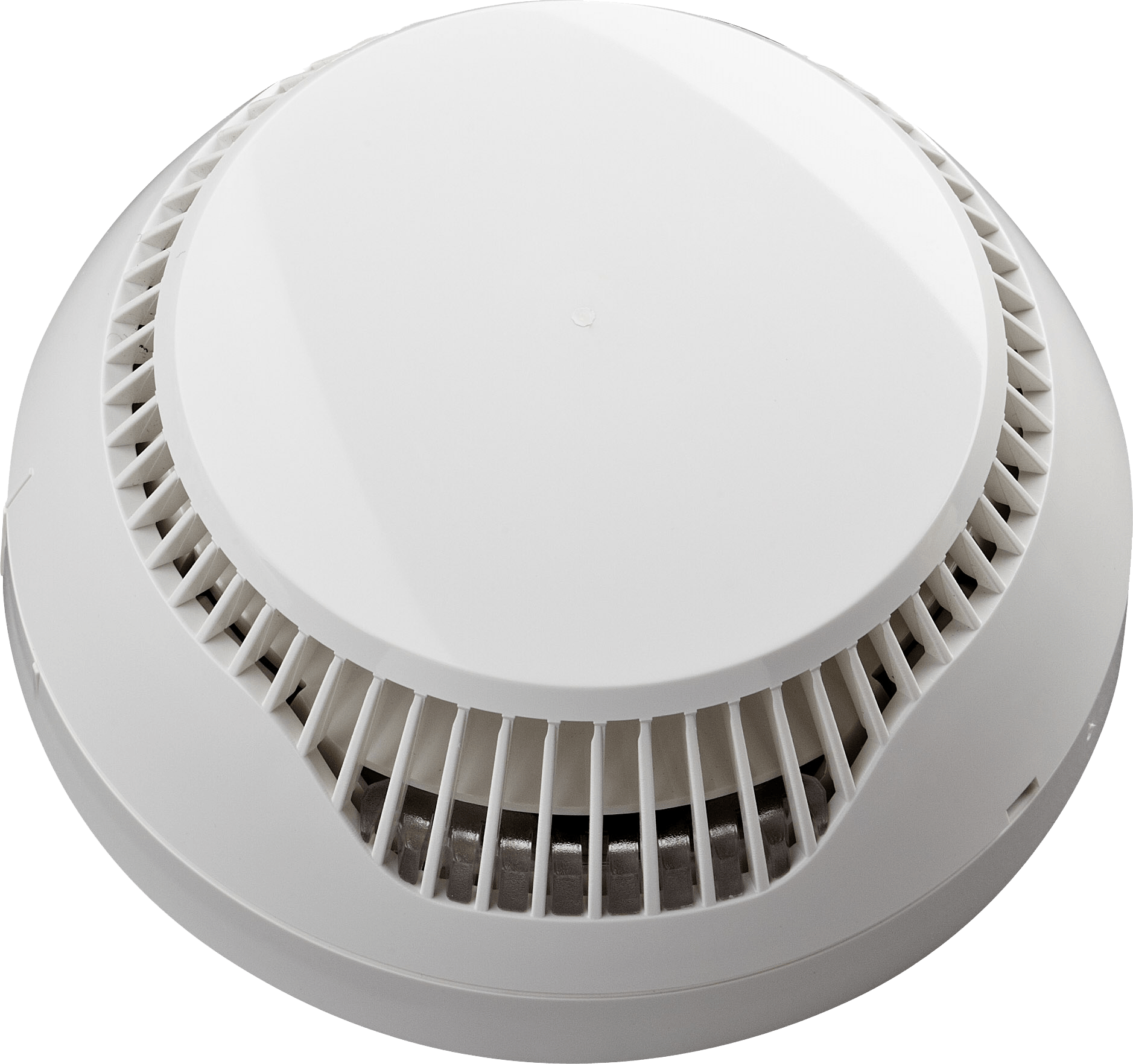

SensoIRIS S130 is аn addressable optical-smoke detector designed for installation in addressable fire alarm systems supporting TTE communication protocol.

SensoIRIS S130 is аn addressable optical-smoke detector designed for installation in addressable fire alarm systems supporting TTE communication protocol. The detector is powered on from the panel and can be controlled via the communication protocol.

The detector SensoIRIS S130 is compatible with fire base B124.

SensoIRIS S130 comes with OEM's lifetime warranty!

Description

  • Sensitivity level selectable from the control panel – High/Normal/Middle/Low
  • Day/Night mode
  • Low profile design
  • Led indication with 360° visibility
  • EN54-7 Certified
  • Version with built in isolator – SensoIRIS S130 IS
Operating Voltage Range15 – 32VDC (Nom. 27VDC)
Consumption in quiescent state< 160μA@27VDC
Consumption in alarm state, with communication6.5mA
Output in alarm state at terminal RI (terminals 4/ 1)7.5 mA (max)/ 7.5V
Wire Gauge for terminals0.4mm² – 2.0mm²
Operating temperature-10°C to +60°C
ProtectionIP30
Weight (including base)~125g
Dimensions (including base)103x42mm

* All addressable detectors/sounder & beacon requires base to function; need to be procured separately SensoIRIS B124

** Price are subject to change at anytime. Please confirm via email as no payment gateway is connected.

Color White
Origin Europe
Material ABS
Seller's Warranty 1 Year
